Weight 60 kg of the Titan scooter 3. Wheels Hummer Lithium Batteries:

Color Red & Grey

Warranties 1 year, 6 months The batteries

Equipment Standard Equipment:

• Removable rear basket.
• Removable basket support.

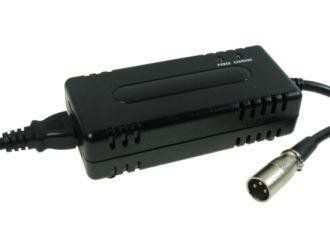

• Charger 12V.
• Left mirror

Type of engine :

• Maximum engine power: 1440 watts
• Reduced motor with differential
• Electromagnetic brake which slows down the scooter when the accelerator is released
• With a freewheel position

Description of the control panel:

• The controls are easy to access and intuitive.
• Dual position throttle lever, forward and reverse.
• Battery gauge.
• Headlight button & rear light + reflector.
• Turn signal + warning button.
• Horn button.
• Speed button tortoise or hare .
• Speed variator button.
• Folds and disassembles quickly in seconds
• Fitted with a removable rear basket Maximum basket load: 7 kg
• Delivered with the left mirror

Dimensions of the scooter:

• Passage of standard doors
• Length = 1390mm.

• Width = 600mm.
• Height = 950mm.

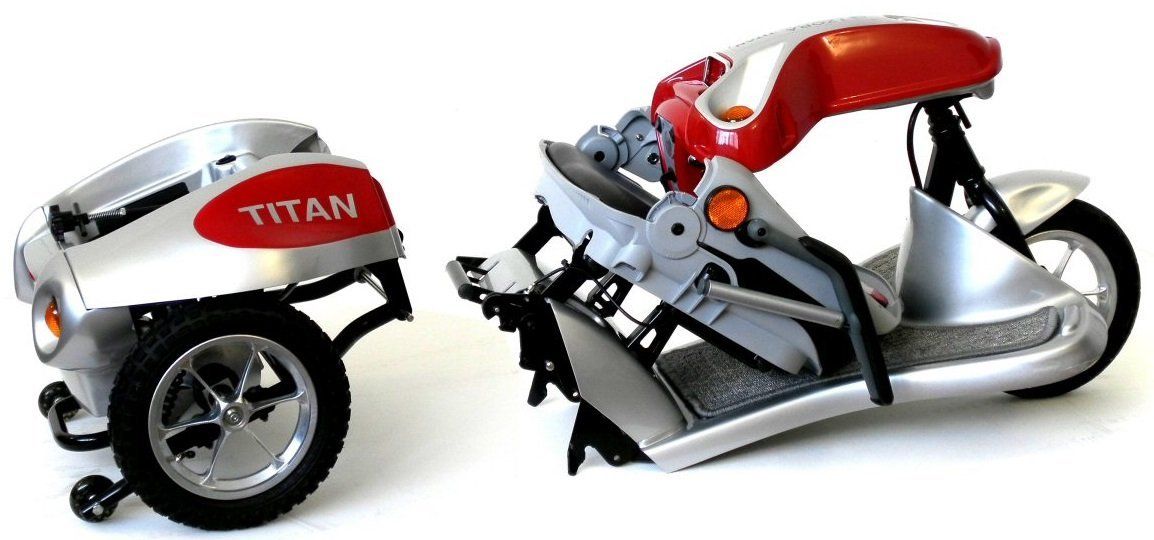

Dismountable in 2 parts:

• Tool-free disassembly
• Dimensions part 1 front of the detached scooter:
• Front frame weight (Including the seat) 22kg
• Length: 990mm.
• Lenght : 610mm.
• Height : 590mm.
• Dimensions part 2 rear of the detached scooter:
• Rear frame weight (excluding batteries) 23kg

• Length : 550mm.
• Lenght : 610mm.
• Height : 430mm.

Seat size:

• Foldable seat with memory foam
• Flip-up armrests

• Seat width = 450mm.
• Seat length = 450mm.
• Back height = 380mm.
• Seat height (floor-seat) = 570mm.
• Seat height from footrest = 380mm.

Wheel Size:

• Aluminum rims
• Studded tires that grip on all types of ground
• Front wheel size =Diameter 310 x 55 mm Lg.

• Rear wheel sizes = Diameter 310 x 55 mm Lg.
• Climbing capacity = 21%.

• Ground clearance = 115mm.
• Turning radius = 1200mm.

Max speed:

• Maximum forward speed: 9.9 km/h.
• Maximum reverse speed: 6 km/h
• Climbing ability: 15%

Lithium batteries:

• Two Lithium Batteries - 24Vlt - 32Ah
• Weight 2x 3.5 Kg.
• Charger 06 08 47 61 76V
• It is possible to charge the batteries independently of the scooter, thanks to the external charging kit.

Average Autonomy:

• 50-100km (average and variable data depending on the weight transported and the conditions of use).
• Loading time : 4:00 a.m. at 80% and of 6 at 10H at 100%.

• CE 12184 approval - Road approved.
• Equipped with two anti-tilt castors at the back
• Anti-corrosion coating:

Weight scooter Titan 3. Wheels hummer Lithium batteries:

• Bare weight: 45kg without the batteries and the rear basket.
• Weight of removable Lithium batteries: 2 x 4.5kg= 9kg.
• Average autonomy: 50 to 100 km
• Weight of removable rear basket support and removable rear basket: 7 Kg.
• Weight Total including both batteries: 60 Kg.
• Max weight. of the user: 150kg

Titan scooter weight 3. Lead battery wheels:

• Bare weight: 45kg without the batteries and the rear basket.
• Weight of removable lead batteries: 2 x 9.5kg= 19kg.
• Average autonomy: 20 to 25 km
• Weight of removable rear basket support and removable rear basket: 7 Kg.
• Weight Total including both batteries: 70 Kg.
• Max weight. of the user: 136kg

Optional equipment:

• - Integral anti-puncture treatment of tyres.
• - Kit for charging the two batteries outside the scooter This kit allows you to charge the two removable batteries without having to have the scooter. This allows you, for example, to charge the two batteries in your apartment and leave your scooter on the ground floor of your residence or vacation spot.
• - Car charging kit for two batteries, cigarette lighter socket type.
• - Right mirror
